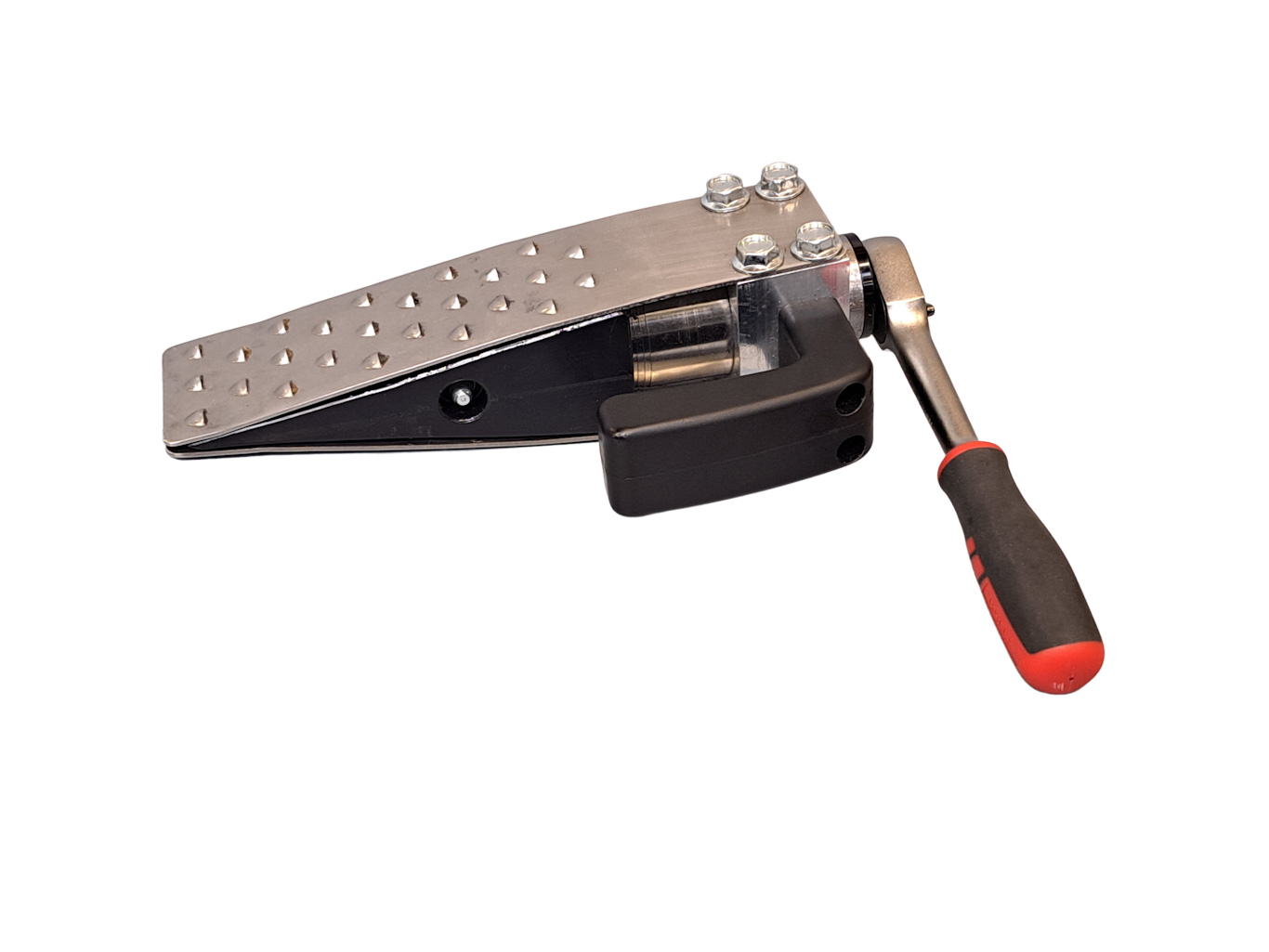

Titan 50 Felling Wedge

The EDER  Titan 50 is the smaller version of the proven EDER  Titan 80 Pro. It is used in heavy timber harvesting and is an alternative to heavy wedge work. Compared to classic wedge variants, the EDER  Titan 50 has the following advantages:

It can be operated with an impact wrench up to a 750 Nm.
Backscrewing and re-setting of the wedge is possible if the lifting height is too low .
Power-saving and ergonomically favorable work due to high lifting forces and gear ratios.
Increased safety when felling on slopes.
Danger of falling deadwood is reduced by vibration-free wedging.
Encapsulated drive spindle prevents contamination and resulting damage to the drive.

TECHNICAL SPECIFICATIONS
Weight: 1,6 kg
LxBxH: 240 mm x 118 mm x 72 mm
Wedge feed: 100 mm
Stroke / revolution: 2 mm
Max. Lifting force: 15 t
Max. Lifting height: 50 mm
