Mini Cylindre

DESCRIPTION

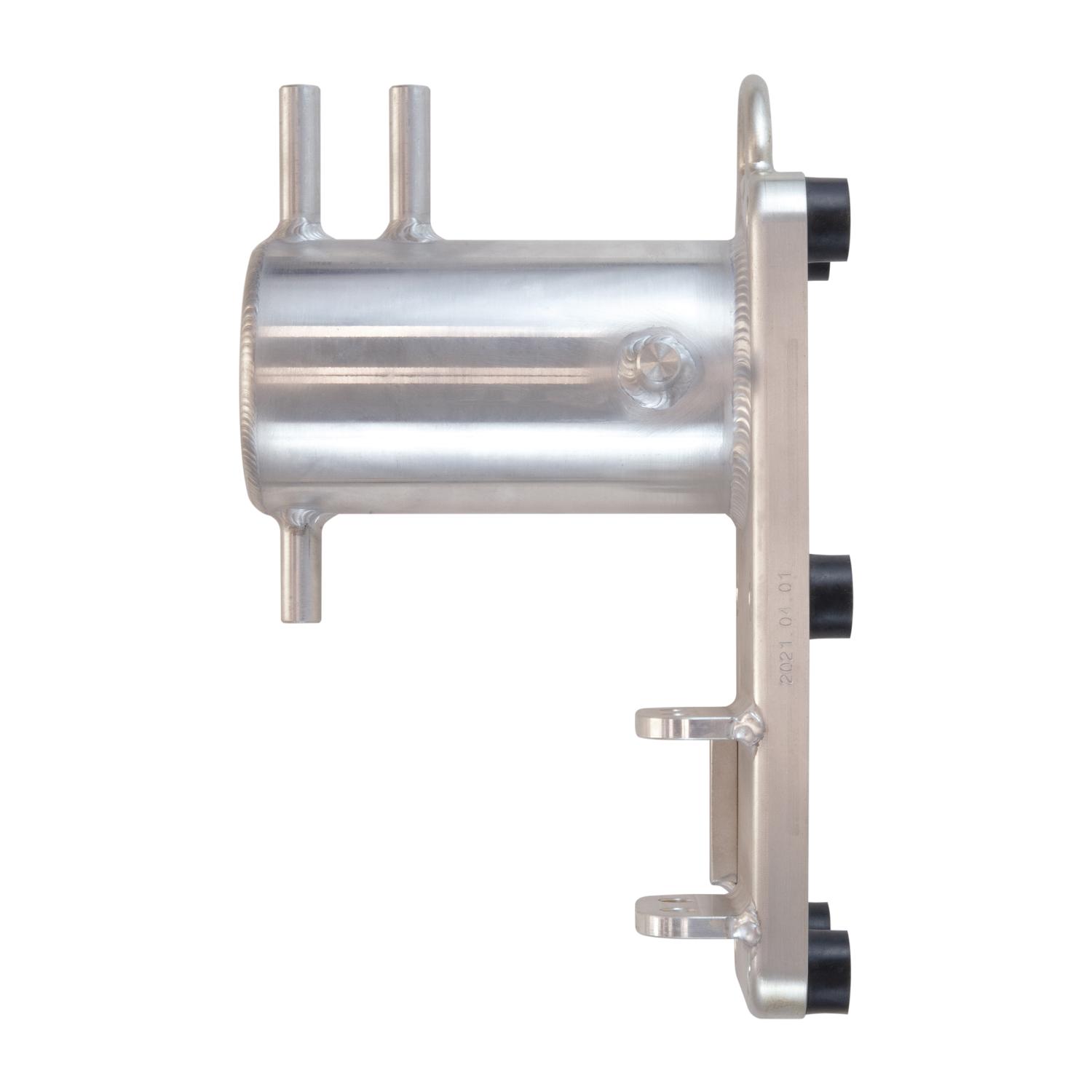

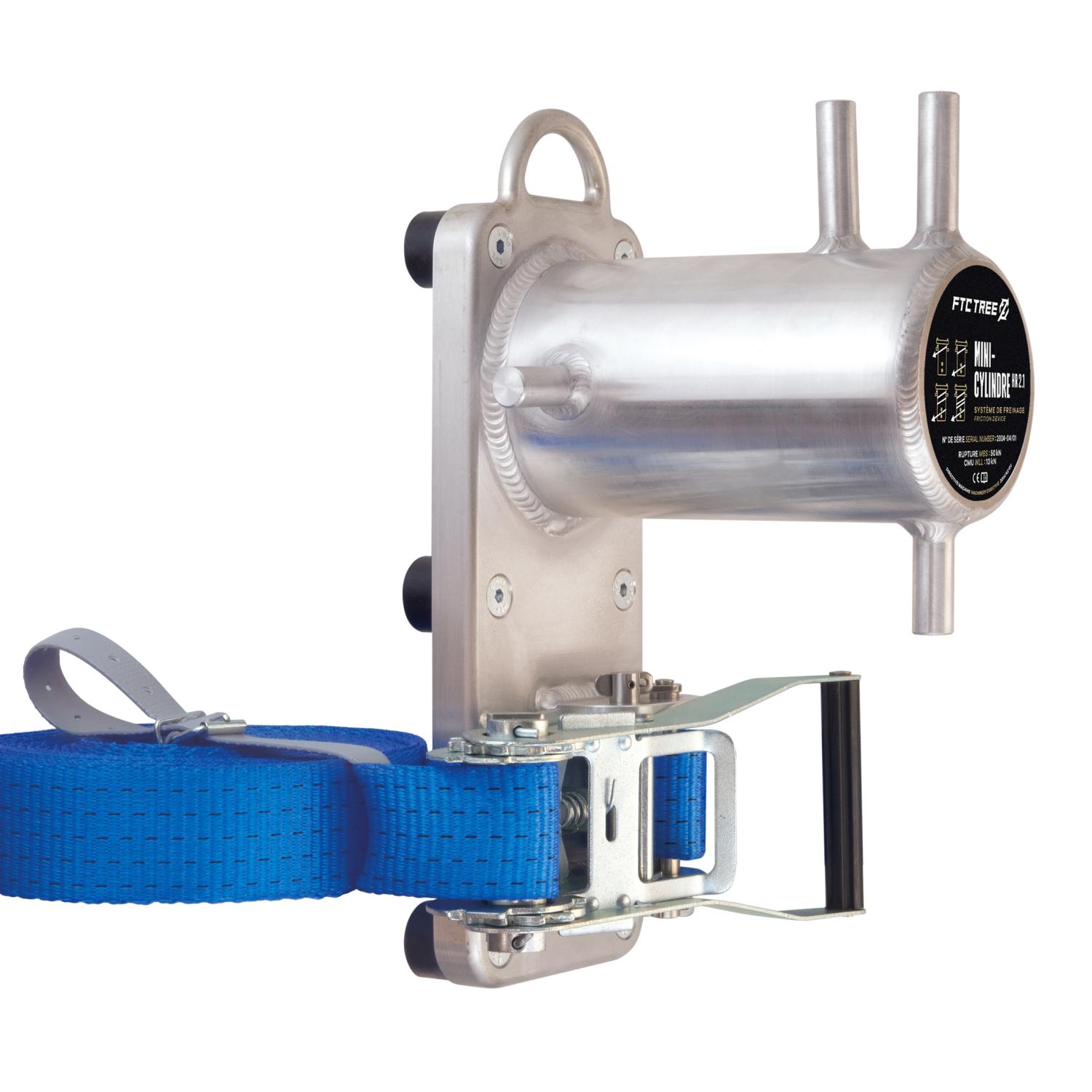

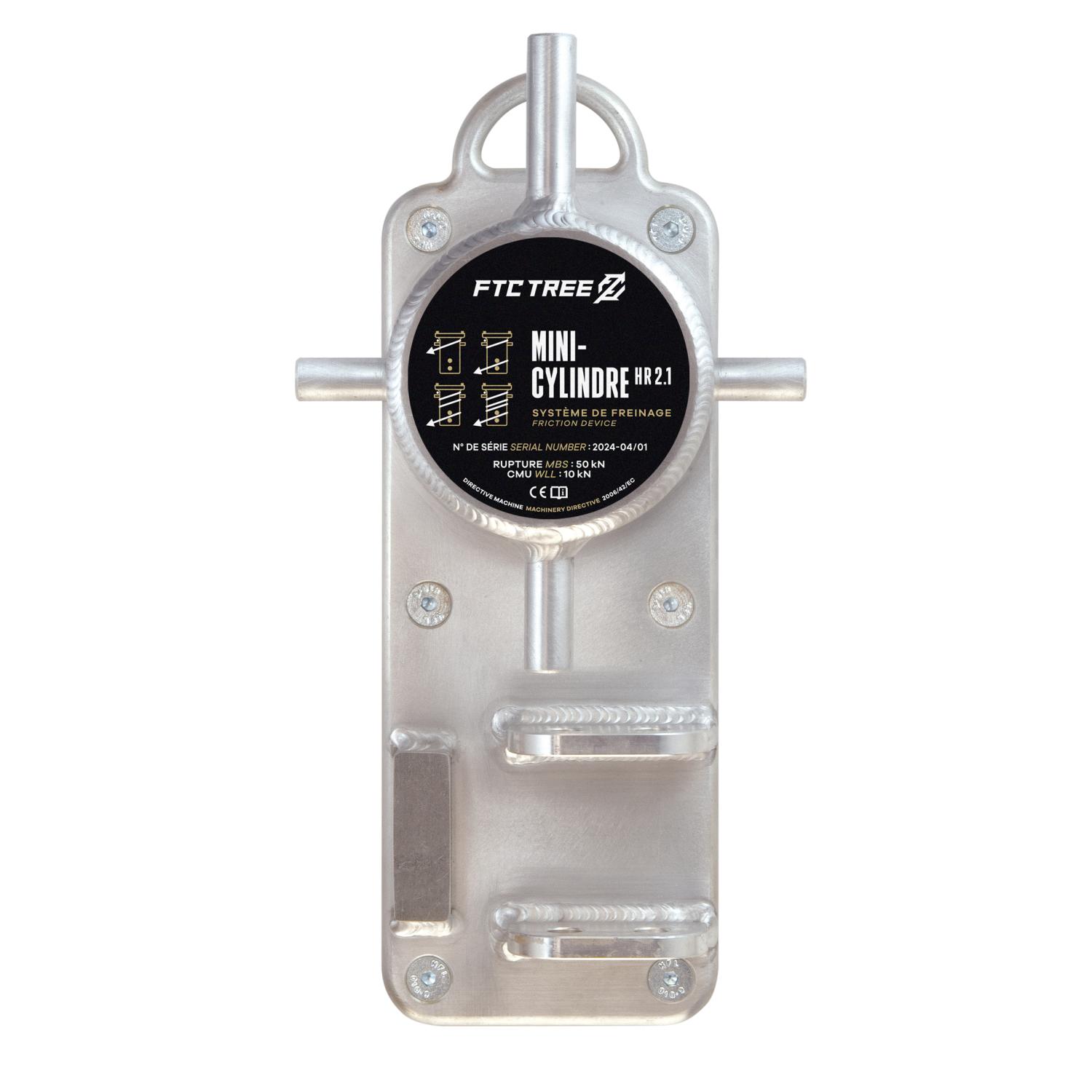

Made entirely of aluminium, it won?t heat up and won´t burn your ropes. The round upper ring enables reeving, and two fairleads at the end of the cylinder prevents losing wraps and overlapping of the rope. A third fairlead under the cylinder enable a finer, more precise rigging.

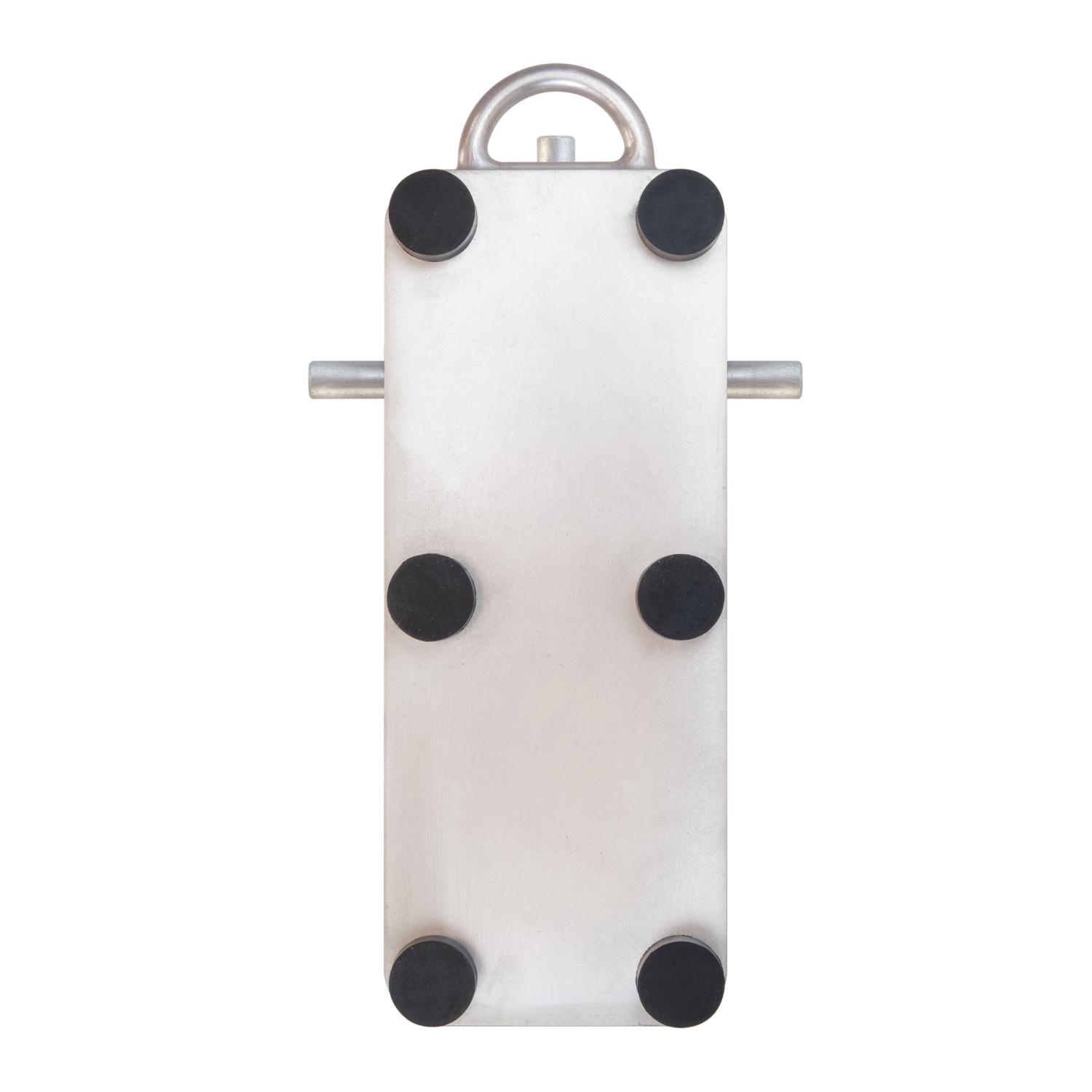

6 rubber silent blocks protect the tree and ensure stability of the cylinder when loaded. The symmetry of the device allows left or right location of the ground crew.

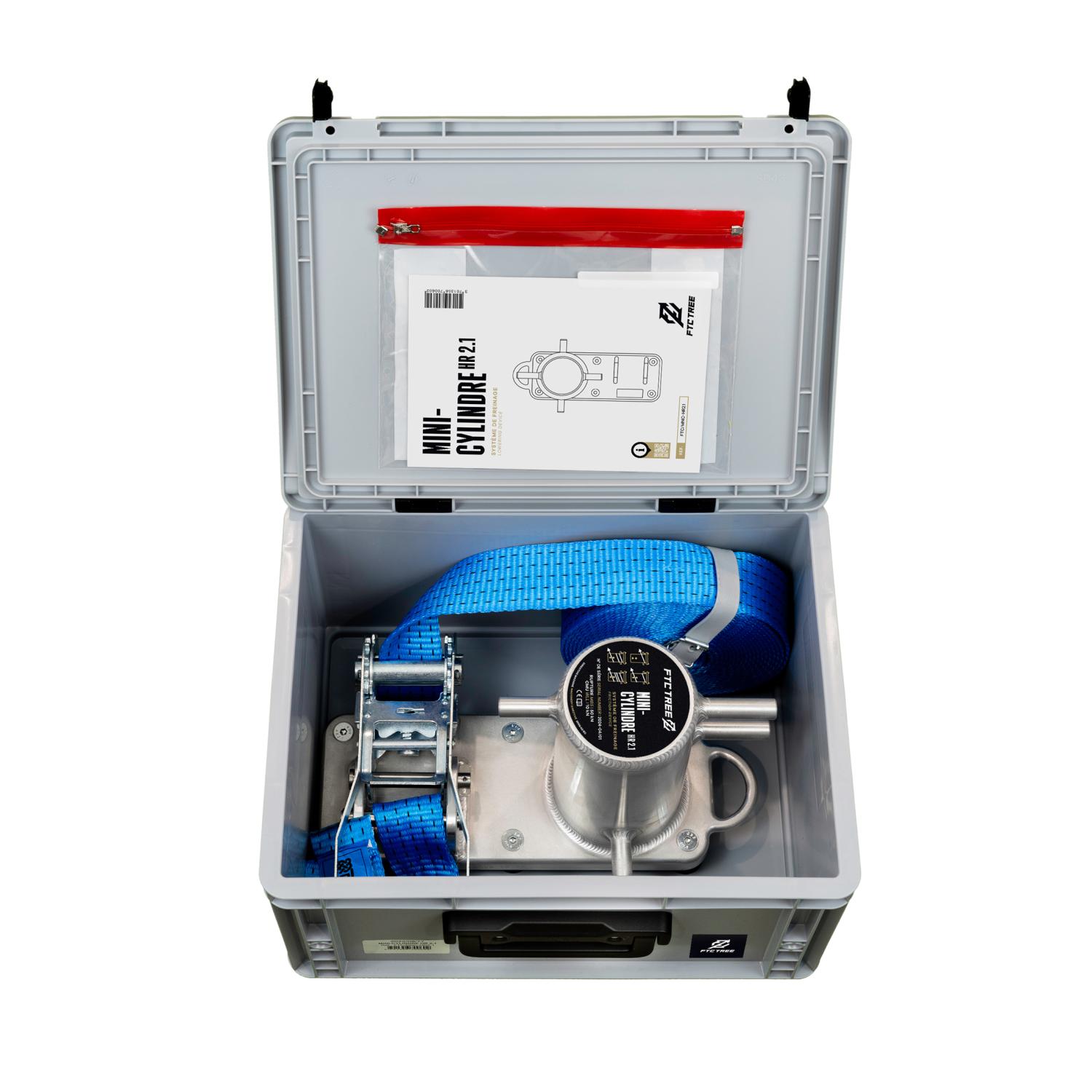

The MINI-CYLINDRE 2.1 is delivered with its strap and its own box for easy transport and storage.

Technical Data

Machinery Directive 2006/42/CE
Weight 3.6 kg (6.61 lb) (7.2 kg (15.8 lb) with strap and transport box)
Distortion 50 kN - WLL: 10 kN
Plate 340 mm high (13.4 in - half ring included), 120 mm wide (4.7 in), 20 mm thick (0.2 in)
Cylinder Ø 100 mm (3.9 in)

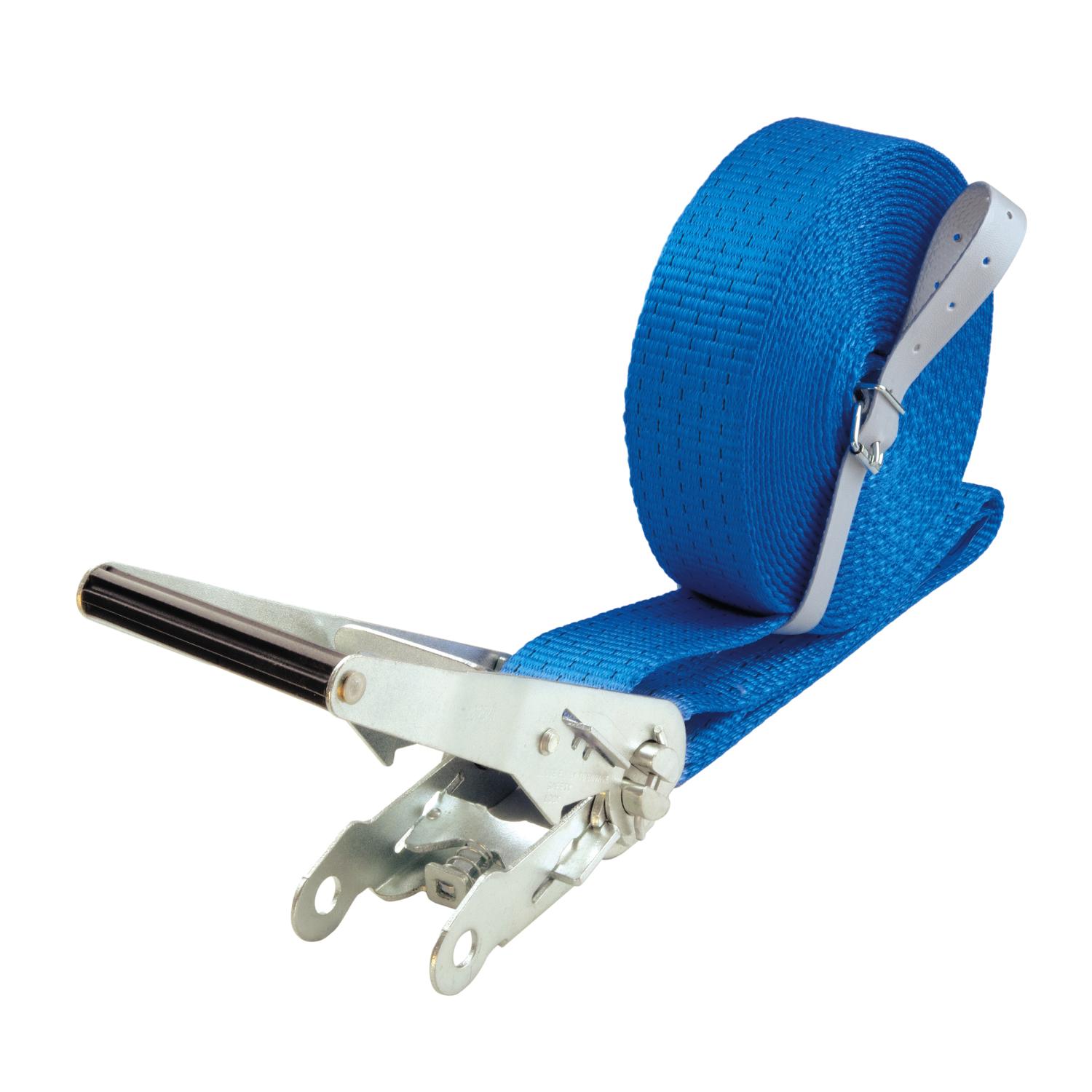

Strap length 9 m (29.5 ft - for trees up to 2 m in diameter - 6.6 ft)
Box 30 cm x 40 cm - 23.5 cm high (11.8 in x 15.7 in - 9.3 in high)
Maximum Ø of rope allowed 16 mm
