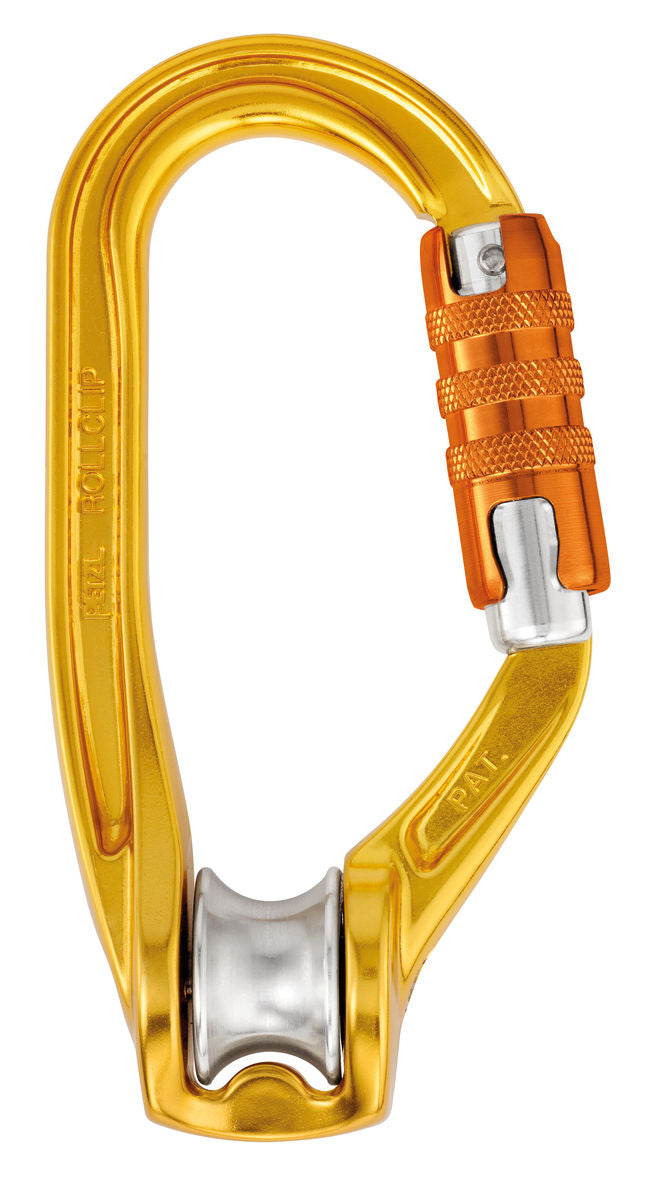

Roll Clip A

The Roll Clip A is a carabiner with an integrated pulley that simplifies rope installation at the anchor. Perfect for work at height, tree felling, rescue, and climbing.

Features

• Pulley mounted on sealed ball bearings for high efficiency (85%)

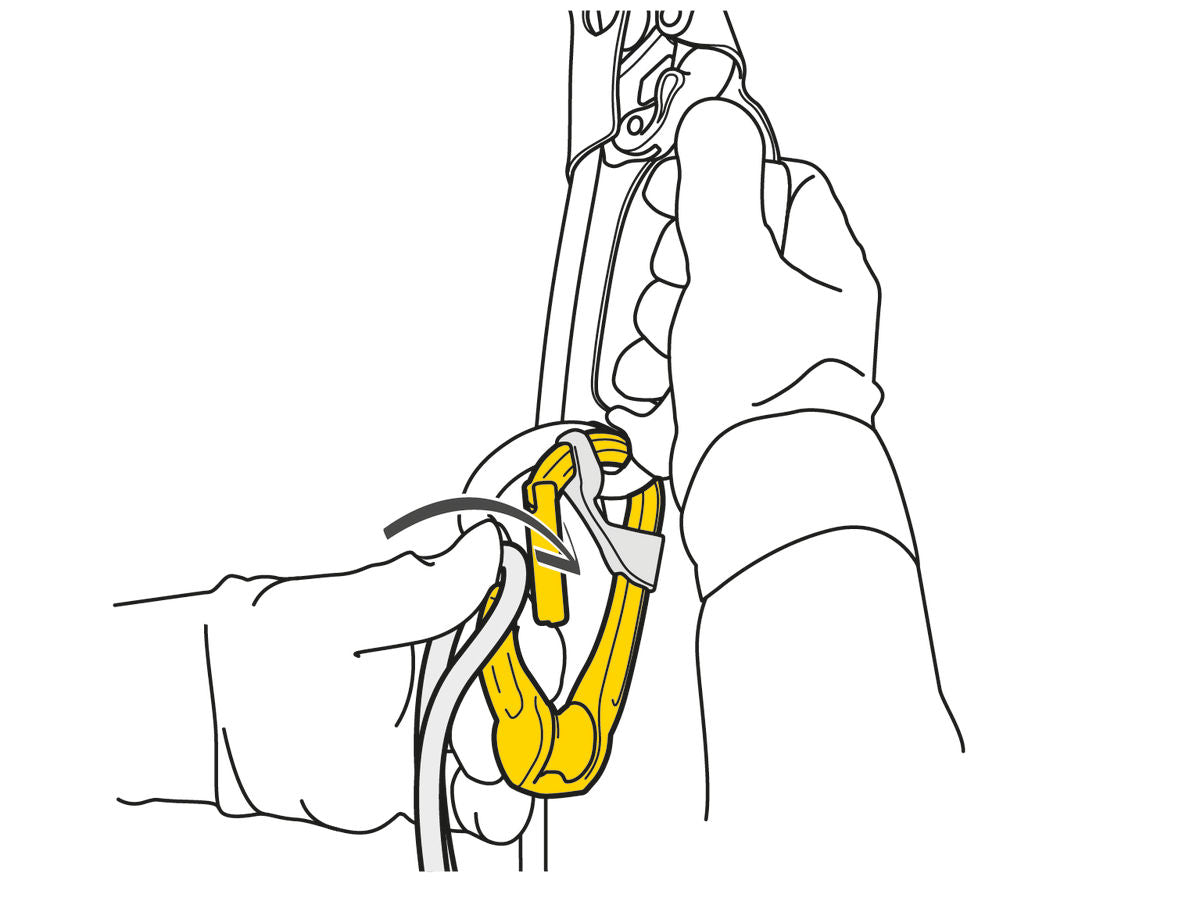

• Opening on the side of the pulley facilitates rope installation when the pulley is attached to the anchor

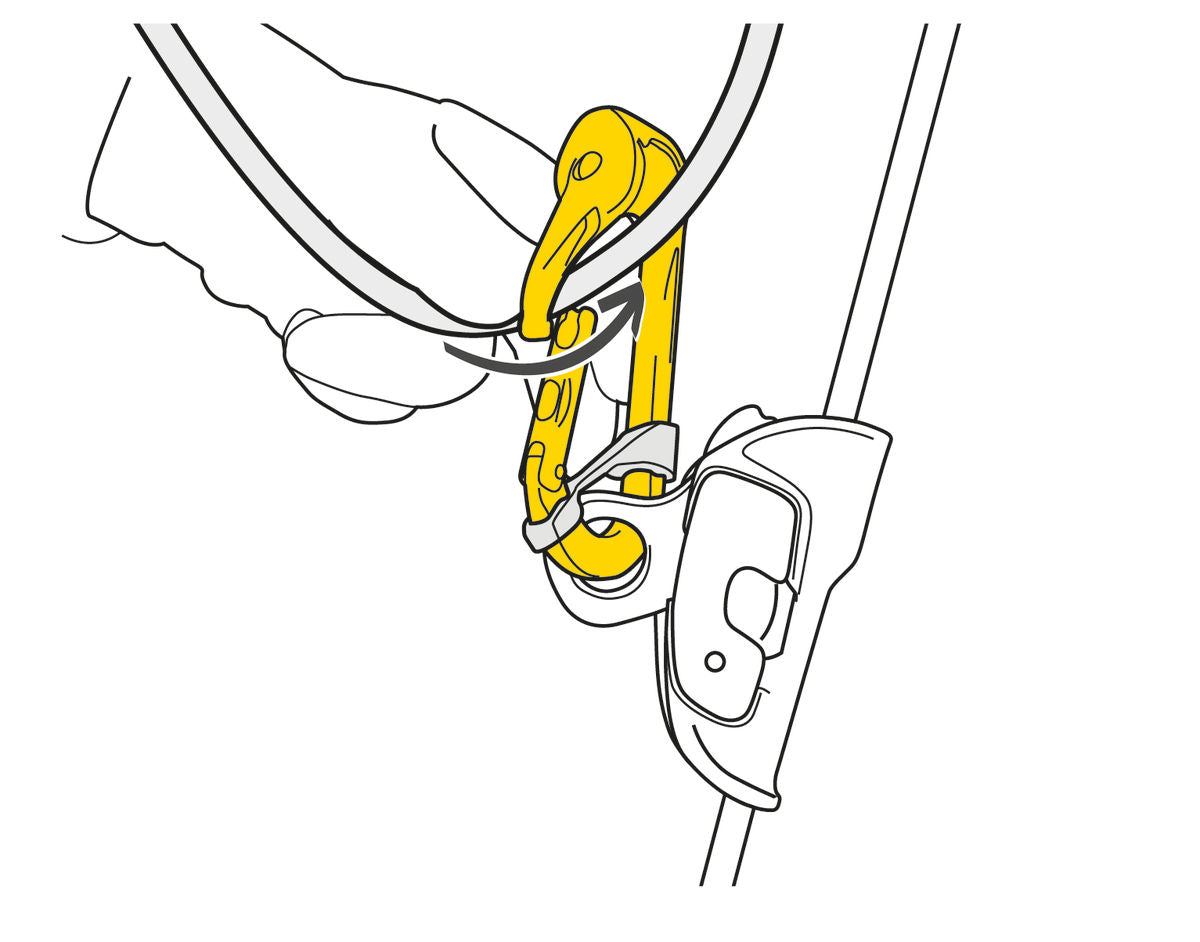

• Can be used with CAPTIV positioning bar to load the carabiner along its major axis, reduce the risk of rotation, and keep it integrated with the device
• Keylock system prevents accidental snagging when placing
• H-profile of the carabiner provides a better strength-to-weight ratio and protects markings from abrasion

Technical specifications

• Material: aluminum
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave diameter: 18 mm
• Maximum working load: 2 x 2 = 4 kN
• Efficiency: 85%
• Major axis strength: 20 kN
• Minor axis strength: 8 kN
• Open gate strength: 7 kN

Details

• Locking system: TRIACT-LOCK (115 g) or non-locking (105 g)
• Gate opening: 22 mm (TRIACT-LOCK) / 25 mm (non-locking)
• Certifications: CE EN 362, EN 12275, EN 12278, EAC
• Warranty: 3 years
