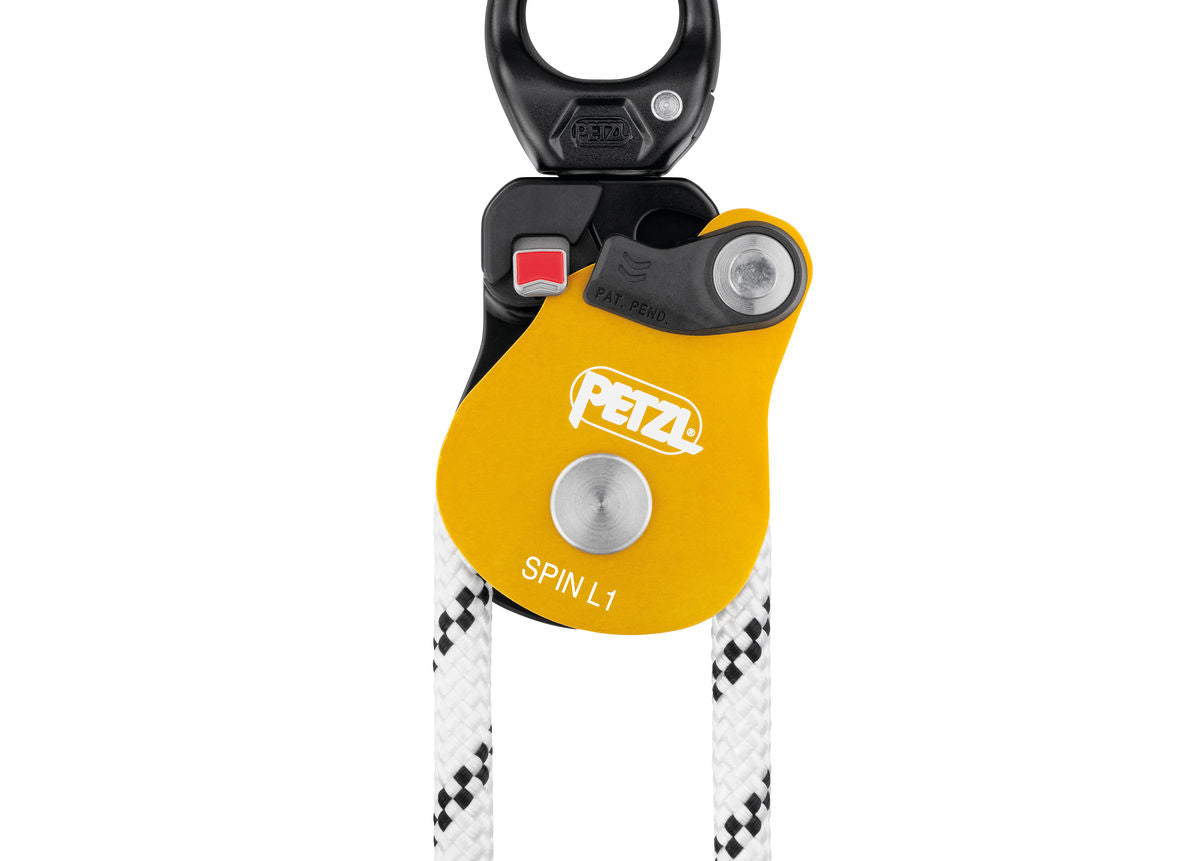

SPIN L1

The SPIN L1 pulley is designed for maximum simplicity when setting up hauling systems, load deviations, and tyrolean traverses. The large, sealed ball bearing sheave provides exceptional 95% efficiency, while the swivel facilitates handling and orientation under load.

The SPIN L1 from Petzl is a highly efficient single pulley with a swivel, perfect for work at height, rescue, and arboriculture. The pulley can be opened even when attached to the anchor point, making rope installation quick and easy - even with gloves. The red marking visually warns when the side plate is unlocked, and the special design optimally protects the rope path.

Features

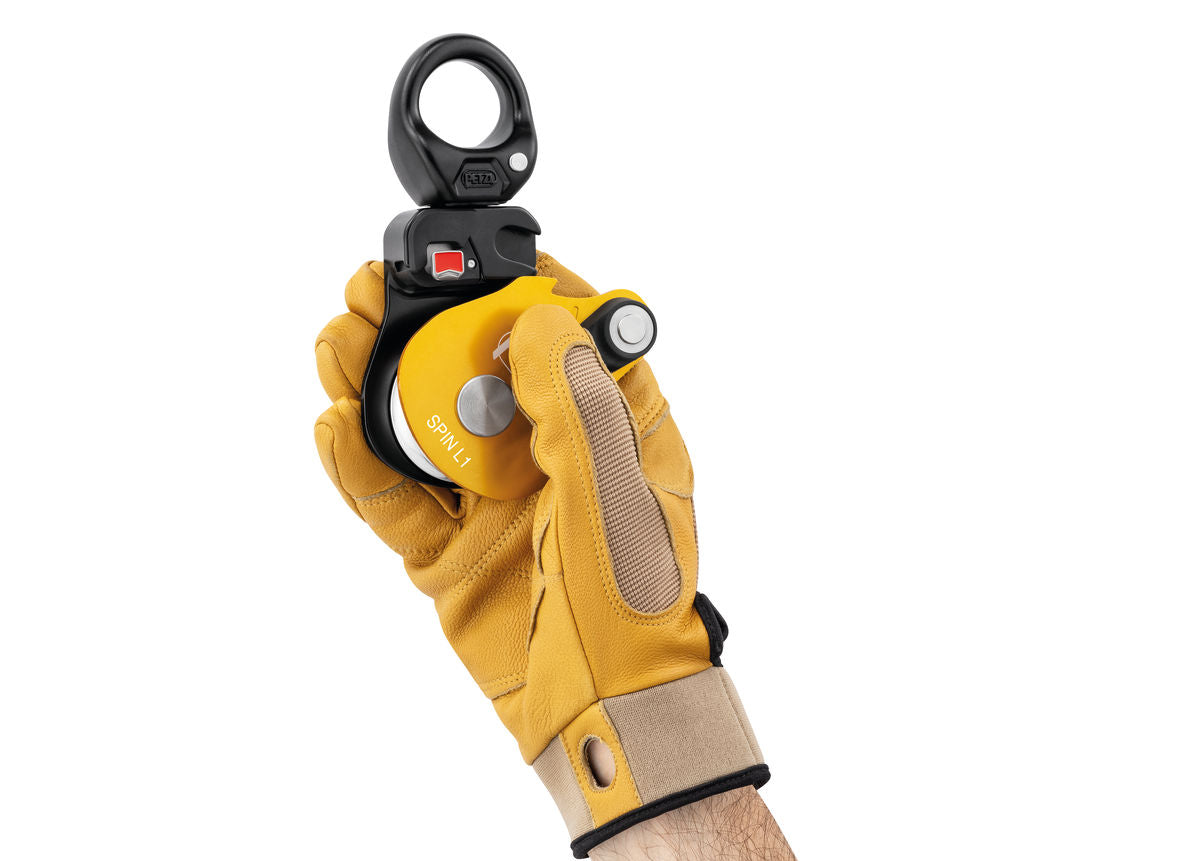

• Three-way opening mechanism on the side plate: Quick and easy opening, even with gloves.
• Rope installation possible with the pulley attached to an anchor point.
• Red warning marker when the side plate is unlocked.
• Special side plate design protects the rope path and allows the use of Prusik knots in progress capture systems.
• Large sheave diameter (38 mm) with sealed ball bearings for 95% efficiency.
• Swivel orients the pulley under load and accepts up to three carabiners, ropes, or slings for smooth maneuvers.
• Optimal for hauling systems, load deviations, and tyrolean traverses in arboriculture, rescue, and work at height environments.

Technical specifications

• Weight: 290 g
• Certifications: CE EN 12278, NFPA 2500 Pulley General Use, UIAA, UKCA, XF 494: FZL-H-T9.5/13
• Material: Aluminum, stainless steel, nylon
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave type: Sealed ball bearings
• Sheave diameter: 38 mm
• Maximum working load: 4 x 2 = 8 kN
• Breaking strength: 36 kN
• Efficiency: 95 %
