SPIN L2

The SPIN L2 is a highly efficient double pulley with a swivel from Petzl, perfect for complex haul systems and tensioned lines in work at height and rescue. Its openable side plate makes it easy to use, even when attached to the anchor.

Detailed description

The SPIN L2 is designed for maximum simplicity when setting up haul systems or tensioned lines for work at height or rescue. The two parallel-mounted sheaves and the additional attachment point make it ideal for complex hauling arrangements. The large sheave diameter with sealed ball bearings provides exceptional efficiency of 95%. The swivel facilitates handling by allowing rotation under load and direct connection of carabiners, ropes, or slings.

Features

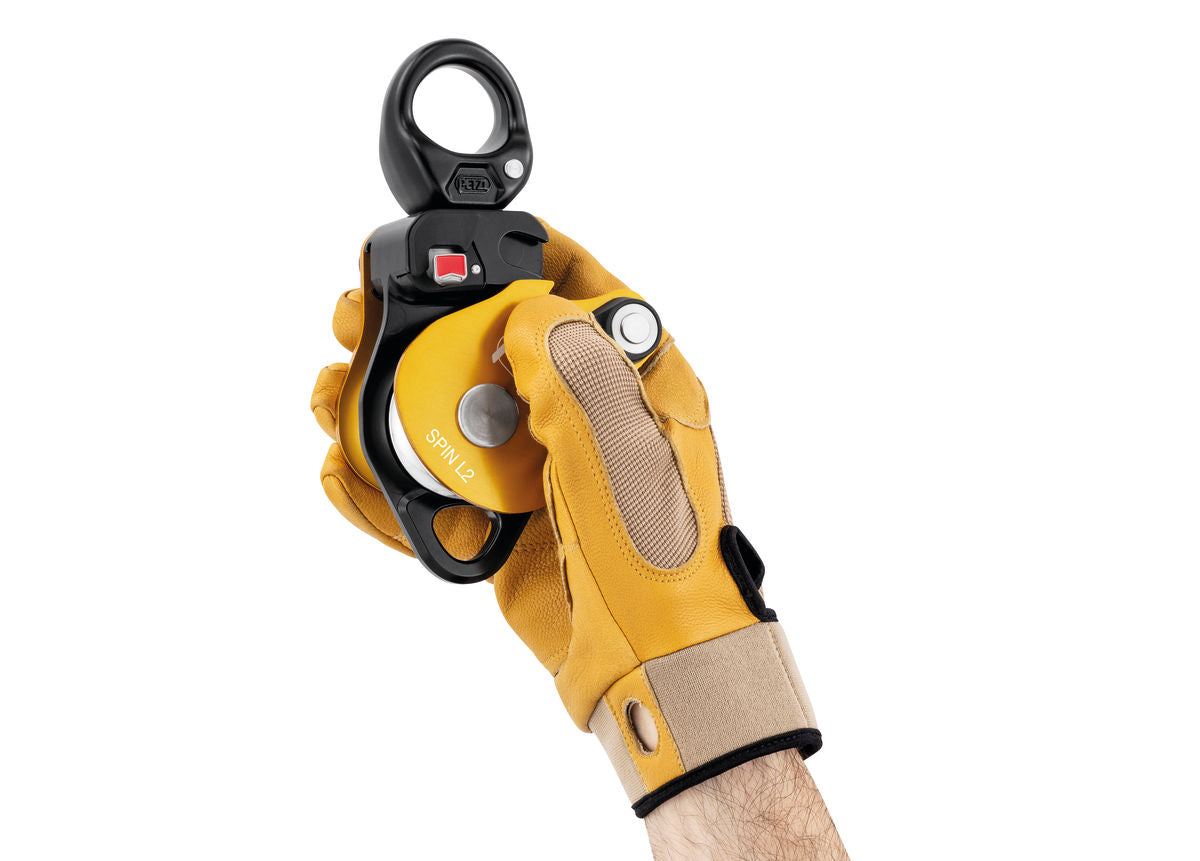

• Three-step opening of the movable side plate is quick and easy, even with gloves
• Rope can be installed when the device is connected to the anchor
• Red marking provides visual warning when the side plate is unlocked
• Special side plate design protects the rope path
• Large sheaves with sealed ball bearings for optimal efficiency

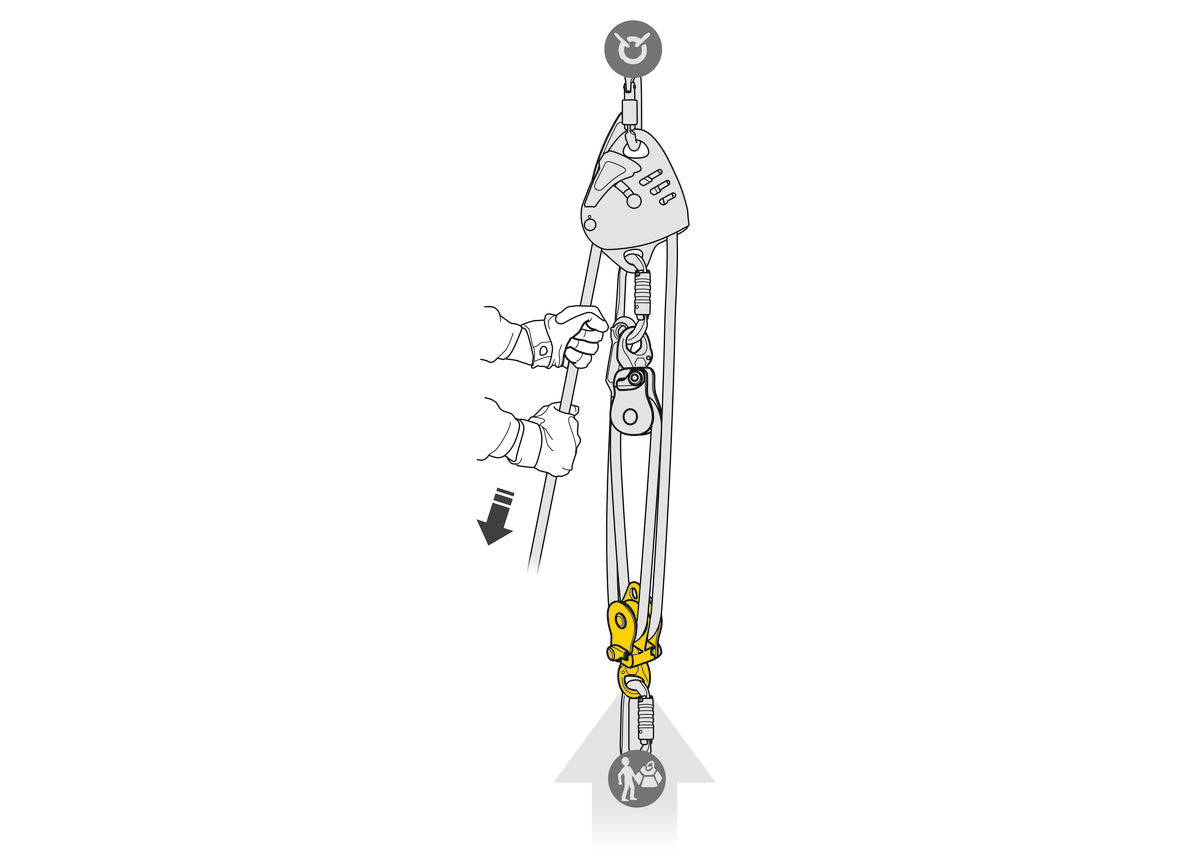

• Parallel-mounted sheaves and extra attachment point for complex haul systems
• Swivel allows rotation under load
• Swivel accommodates up to three carabiners
• Swivel and extra attachment point allow use of ropes and slings for easier maneuvers

Technical specifications

• Weight: 480 g
• Certification(s): CE EN 12278, NFPA 1983 Pulley General Use, UIAA
• Material: aluminum, stainless steel, nylon
• Min. rope diameter: 7 mm
• Max. rope diameter: 13 mm
• Sheave bearing: sealed ball bearings
• Sheave diameter: 38 mm
• Maximum load: 8 kN (3 kN per strand, see instructions for more information)
• Breaking strength: 36 kN
• Efficiency: 95 %
